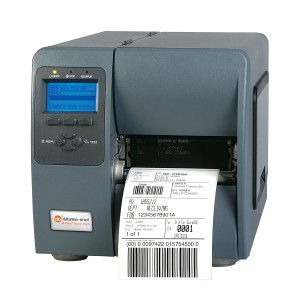

M-Class Mark II Printer

M-Class™ Mark II printers offer great value for warehouse, healthcare, logistics and retail applications. They keep up with high-label-demand applications, boasting faster performance than many printers in their class. M-Class printers also feature a modular design and field-installable options to cut back on downtime and improve efficiency.

General Features & Benefits

  • Features a durable precision die-cast aluminum frame and clear side window so you can easily monitor media supply levels
  • Five-button, 128×64 LCD graphics backlit display is easy to read, enabling user-friendly label configuration setup.
  • Multi-language menu available in English, Spanish, German, Italian and French.
  • Features widely used DPL and supports PL-Z and PL-I printer-language emulations for easy integration into your existing applications.
  • Modular design makes maintenance and part replacement easy. IntelliSEAQ™ printhead includes proactive diagnostic tools for easy access to printhead performance and history.
  • Field installable options such as cutters, peel & present sensors, and thermal transfer capabilities can be added easily to upgrade a base printer.
  • Supports UHF and HF RFID configurations for current or future requirements, protecting your printer investment.

Product Details

M-Class Mark II Compact Industrial Printers are easy on your budget, while providing industrial printing performance in a compact footprint.

They’re perfect for warehouse, healthcare, logistics and retail applications. Measuring 259 x 257 x 462 mm (10.21 x 10.10 x 18.19 in), the smaller footprint is ideal for users who need the power of industrial printers but must consider space limitations.

M-Class Mark II printers also reduces your total cost of ownership with easy-to-maintain components. They’re versatile, too. Use them in a wide variety of applications with a range of media compatibility, connectivity, emulation support and options

Specifications

  • Printhead: Direct thermal; optional thermal transfer
  • Resolution: 8 dots/mm (203 dpi); optional 12 dots/mm (300 dpi)
  • Media roll width: 19 mm (0.75 in) to 118.1 mm (4.65 in)
  • Maximum print width: 108 mm (4.25 in)
  • Print speed:
    • M-4206: 152 mms (6 ips), 8 mmps (203 dpi)
    • M-4210: 254 mms (10 ips), 8 mmps (203 dpi)
    • M-4308: 203 mms (8 ips), 12 mmps (300 dpi)
  • Communication ports: Serial, parallel, USB; optional Ethernet-wired LAN 10/100; optional wireless 802.11b/g#
