ENC-M410-H-100

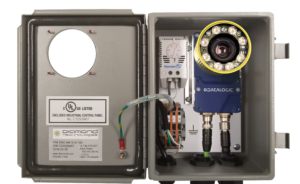

Open Unit

The Diamond Technologies ENC-M410-H-100 is an Industrial NEMA 12 (IP52 equiv.) heated enclosure for use with the Datalogic Matrix 410N barcode scanner. The enclosure is designed to allow the use of the Matrix 410N in humidity controlled freezers with a temperature below 32°F (0°C) and as low as –20°F (-28.8°C). The enclosure includes L shaped internal mounting brackets specifically designed to accommodate the Matrix 410N. The enclosure also includes L shaped brackets for enclosure mounting along conveyors or other fixed structures. The ENC-M410-H-100 features include internal thermostat, 110V AC power cord, cord sealing grommets, polycarbonate optic grade scanner window, locking latches, and (2) ports for ethernet and power/ communication connections to the Matrix 410N. The enclosure is UL 508 rated.

Features & Benefits:

  • Optical Grade Anti-Scratch, Anti-Smudge coated scan Window

    Closed Unit

  • 14 Gauge, NEMA 12 (IP52 Equivalent) steel protective housing
  • Onboard thermostat controlled heater
  • Easy installation with included bracketry
  • Optional remote temperature monitoring and alarming
  • UL 508 rated enclosure

Available Models:

ENC-M410-H-100Matrix 410 heated industrial enclosure, Nema 12, AR, Anti-scratch window, thermostat fixed, for freezer applications
ENC-M410-H-101Matrix 410 heated industrial enclosure, Nema 12, AR, Anti-scratch window, thermostat fixed, for freezer applications, remote monitoring sensor
