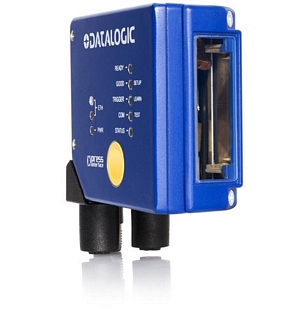

DS2100N – 2K Series
The DS2100N industrial laser bar code reader takes advantage of Datalogic Automation’s successful experience in 1D bar code
reading, satisfying the demanding application needs of the largest manufacturers worldwide. The DS2100N provides greater profitability and productivity in the most common warehousing, shop floor and OEM applications. Equipped with limitless connectivity options including PROFINET, EtherNet/IP, and Ethernet TCP/IP communication protocols, the DS2100N is the optimal choice for short reading distances.
Features & Benefits
- Embedded Ethernet connectivity
- Two PROFINET Ports
- Embedded Ethernet Switch
- Rotating connector block
- Compact dimensions
- Installation flexibility and optimum form factor
- Advanced Code Reconstruction (ACR)
- Excellent performance on low quality and damaged labels
- Up to 300mm (11.8 in.) reading distance
Applications
- Small conveyor
- Picking systems
- Automatic warehousing
- Packaging machine
- Document handling machines
- Print & Apply systems
- Quality control and parts tracking
Available Models
| Part Number | Description |
| 930153183 | DS2100N-1200 STD-RES, LINEAR, NSC |
| 930153184 | DS2100N-2200 HI-RES, LINEAR, NSC |
| 930153185 | DS2100N-1210 STD-RES, RASTER, NSC |
| 930153186 | DS2100N-2210 HI-RES, RASTER, NSC |
| 930153187 | DS2100N-1204 STD-RES, LINEAR, HI-PERF, NSC |
| 930153188 | DS2100N-1214 STD-RES, RASTER, HI-PERF, NSC |
| 930153189 | DS2100N-2204 HI-RES, LINEAR, HI-PERF, NSC |
| 930153190 | DS2100N-2214 HI-RES, RASTER, HI-PERF, NSC |
| 930153232 | DS2100N-1300 STD-RES, LINEAR, ETH, D |
| 930153234 | DS2100N-1310 STD-RES, RASTER, ETH, D |
| 930153233 | DS2100N-1304 STD-RES,LIN,HI-PERF,ETH,D |
| 930153235 | DS2100N-1314 STD-RES,RAST,HI-PERF,ETH,D |
| 930153236 | DS2100N-1400 STD-RES, LINEAR, PNET, D |
| 930153238 | DS2100N-1410 STD-RES, RASTER, PNET, D |
| 930153237 | DS2100N-1404 STD-RES,LIN,HI-PERF,PNET,D |
| 930153239 | DS2100N-1414 STD-RES,RAST,HI-PERF,PNET,D |
