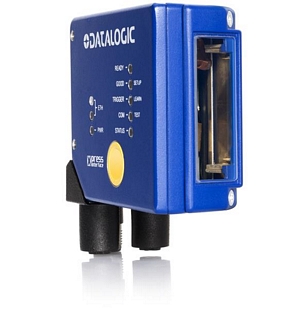

DS2400N – 2K Series
The DS2400N is the first-in-its-class laser bar code reader offering maximum connectivity freedom, improved optic performance and easy installation in the most demanding applications including warehousing, shop floor and OEM machinery. The DS2400N is the optimum choice for short-medium reading distance applications and it is equipped with all connectivity options including PROFINET,EtherNet/IP, and Ethernet TCP/IP communication protocols.
Features & Benefits
- Embedded Ethernet connectivity
- Two PROFINET Ports
- Embedded Ethernet Switch
- Rotating connector block
- Compact dimensions
- Installation flexibility and optimum form factor
- Advanced Code Reconstruction (ACR)
- Excellent performance on low quality and damaged labels
- Up to 600mm (23.6 in) reading distance
Applications
- Small conveyor
- Picking systems
- Automatic warehousing
- Packaging machines
- Print & Apply systems
- Quality control and parts tracking
Available Models
Part Number | Description |
| 930181379 | DS2400N-0200 SHORT RANGE, LINEAR, NSC |
| 930181380 | DS2400N-0210 SHORT RANGE, RASTER, NSC |
| 930181381 | DS2400N-1200 MEDIUM RANGE, LINEAR, NSC |
| 930181382 | DS2400N-1210 MEDIUM RANGE, RASTER, NSC |
| 930181383 | DS2400N-2200 LONG RANGE, LINEAR, NSC |
| 930181384 | DS2400N-2210 LONG RANGE, RASTER, NSC |
| 930181481 | DS2400N-0300 SHORT RANGE, LINEAR, ETH, D |
| 930181482 | DS2400N-0310 SHORT RANGE, RASTER,ETH, D |
| 930181485 | DS2400N-1300 MEDIUM RANGE,LINEAR,ETH,D |
| 930181486 | DS2400N-1310 MEDIUM RANGE, RASTER,ETH, D |
| 930181489 | DS2400N-2300 LONG RANGE, LINEAR, ETH, D |
| 930181490 | DS2400N-2310 LONG RANGE, RASTER,ETH, D |
| 930181483 | DS2400N-0400 SHORT RANGE, LIN, PNET, D |
| 930181484 | DS2400N-0410 SHORT RANGE,RASTER,PNET,D |
| 930181487 | DS2400N-1400 MEDIUM RANGE, LINEAR,PNET,D |
| 930181488 | DS2400N-1410 MEDIUM RANGE, RASTER,PNET,D |
| 930181491 | DS2400N-2400 LONG RANGE, LINEAR, PNET, D |
| 930181492 | DS2400N-2410 LONG RANGE, RASTER, PNET, D |
DS2400N Subzero
Part Number | Description |
| 930181415 | DS2400N-0205 SHORT RANGE, LINEAR, NSC, SUBZERO |
| 930181416 | DS2400N-0215 SHORT RANGE, RASTER, NSC, SUBZERO |
| 930181417 | DS2400N-1205 MEDIUM RANGE, LINEAR, NSC, SUBZERO |
| 930181418 | DS2400N-1215 MEDIUM RANGE, RASTER, NSC, SUBZERO |
| 930181419 | DS2400N-2205 LONG RANGE, LINEAR, NSC, SUBZERO |
| 930181420 | DS2400N-2215 LONG RANGE, RASTER, NSC, SUBZERO |
