DE03
DE03-003

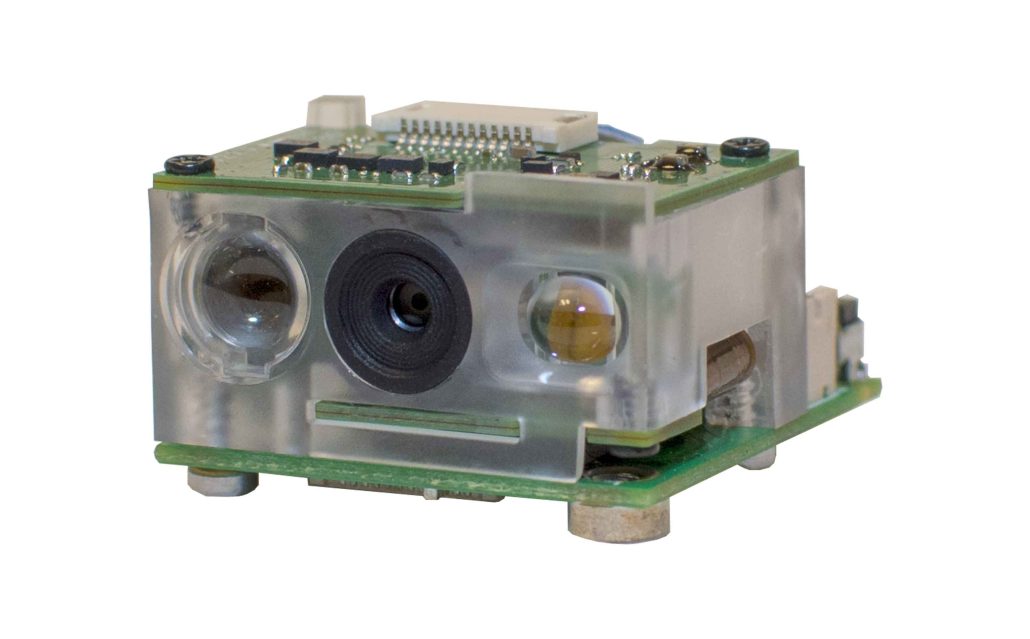

The DE03’s ultra small form factor combined with it’s high resolution image sensor make it the perfect fit for demanding scanning applications.
At just 22.61 L x 24 W x 14.61 H mm, the DE03 provides a highly compact form factor. The scan module’s CMOS 1280 x 800 megapixel image sensor and fast onboard processor are capable of up to 120 frames per second. The DE03 features also include increased reading on skew angles of 60 degrees and an increased shock rating of 3500G. The DE03 is capable of reading all 1D and 2D codes including high resolution and high density codes such as those found on microtiter plates, test tubes, and other lab sample carriers.
DE03-006 Wide Angle
The DE03 also has a wide angle model which facilitates close range reading on long barcodes. With a minimum scan distance of around 14mm depending on barcode, the DE03 wide angle is perfect for ultra compact applications. The DE03 also features an increased resolution of 1280×1080 pixels.
The DE03 embedded scan module supports both UART, USB, and RS232 communications. The reader also includes easy mounting points, simplifying design and integration within OEM devices.
Features
- Extremely compact
- 1 or 1.3 Megapixel Options
- Up to 120fps sensor*
- Low power consumption
- 14mm minimum reading distance
*With Firmware Upgrade
AVAILABLE MODELS:
| DE03 Embedded OEM 2D decoded micro scan module USB interface DF13 | DE03-003 |
| DE03 Embedded OEM 2D decoded micro scan module RS232 interface DF13 | DE03-004 |
| DE03 Embedded OEM 2D decoded micro scan module UART interface DF13 | DE03-005 |
| DE03 Wide Angle Optics Embedded OEM 2D decoded micro scan module USB interface DF13 | DE03-006 |
| DE03 Wide Angle Optics Embedded OEM 2D decoded micro scan module RS232 interface DF13 | DE03-007 |
| DE03 Wide Angle Optics Embedded OEM 2D decoded micro scan module UART interface DF13 | DE03-008 |
Accessories:
| DE03 USB interface cable 1M use with DE03-003 | CAB-DSE-004 |
| DE03 RS232 interface cable 1M use with DE03-004 and DE03-005 | CAB-DSE-005 |
