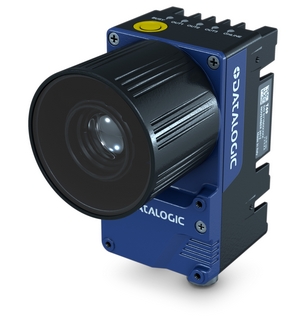

T4x Vision Smart Camera
Datalogic’s new T4x-Series Smart Camera provides customers with outstanding performance in an industrialized and compact
package. Equipped with a powerful 1.1 GHz processor, the T4x-Series performance is exceptional in value and functionality. The T-Series comes in 3 different camera resolutions, VGA, 2 Mega-Pixel and 5 Mega-Pixel all in a sealed, industrially hardened enclosure for maximum protection. Combined with Impact software, the new generation T-series delivers the most rugged and versatile smart camera solution in the market today.
Features & Benefits
- High performance Smart Camera series
- Right-angle IP67 rated enclosure
- Up to 5Mpix grey-scale imager
- Built-in digital I/O and Serial interface
- Gbit Ethernet Port
Available Models
| T4x Series – 1.1Ghz Processor | |
| 512MB RAM/256MB Flash Memory, 2 Inputs / 3 Outputs | |
| 959965001 | Camera, IMPACT T40, Grayscale, 640 x 480, 60 FPS, 1/3” CCD |
| 959965002 | Camera, IMPACT T47, Grayscale, 1600 x 1200, 15 FPS, 1/1.8” CCD |
| 959965003 | Camera, IMPACT T49, Grayscale, 2448 x 2050, 15 FPS, 2/3” CCD |
| Accessories, A30/T4x-Series | |
| I/O Cables | |
| 95A906068 | Cable, PWR & I/O, CAB-SCS01 Cable, A30/T4x to CBX, 1 Meter |
| 95A906069 | Cable, PWR & I/O, CAB-SCS03 Cable, A30/T4x to CBX, 3 Meter |
| 95A906070 | Cable, PWR & I/O, CAB-SCS05 Cable, A30/T4x to CBX, 5 Meter |
| 95A906071 | Cable, PWR & I/O, CAB-SCS10 Cable, A30/T4x to CBX, 10 Meter |
| Gbit Ethernet Cables | |
| 93A050034 | Cable, Gig-E, CAB-GE01 M12-IP67 TO RJ45 1 Meter |
| 93A050035 | Cable, Gig-E, CAB-GE03 M12-IP67 TO RJ45 3 Meter |
| 93A050036 | Cable, Gig-E, CAB-GE05 M12-IP67 TO RJ45 5 Meter |
| 93A051389 | Cable, Gig-E, CAB-GE10 M12-IP67 TO RJ45 10 Meter |
| I/O Boards | |
| 93A301068 | I/O Board, A30/T4x, CBX500 CONNECTION BOX MODULAR |
| 93A301077 | I/O Board, A30/T4x, CBX800 GATEWAY |
| 93ACC1810 | BM300 PROFIBUS MODULE |
| 93ACC1811 | BM310 PROFIBUS IP65 MODULE |
| 93ACC1821 | BA100 DIN RAIL ADAPTERS |
| 93ACC1822 | BA200 BOSCH ADAPTERS |
