MX20 Vision Processor

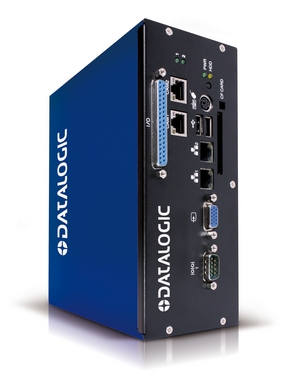

The Datalogic MX20 Series is an entry-level, affordable processor. This rugged, compact model features an Intel® T3100 dual-tn_MX20 (1)core 1.90 GHz processor and two independent PoE (Power over Ethernet) camera ports. The MX20 is easy to deploy, supporting up to two 2.0 Megapixel area scan cameras for a wide range of flexible, robust inspection tasks. The MX20 offers a cost-effective means to migrate from smart-camera applications to an embedded vision system.

Features

  • Supports up to two 2 Megapixel cameras
  • Cost effective Embedded System
  • Intel® T3100 dual-core 1.90 GHz processor
  • Windows XP® or Windows 7® operating system

 Available Models

MX20 Processor – 1.9 GHz Celeron Duo Core – 2 Camera Only
661-0405-MX20MX20 Vision Processor, Windows XP, 4 GB RAM, 2 Camera Licensed**
959912001MX20 Vision Processor, Windows 7, 4 GB RAM, 2 Camera Licensed***
Cameras, M-Series
601-0351Camera, M100, Gig-E, 659 x 494, 100 FPS, Grayscale, 1/4″ CCD
601-0352Camera, M150, Gig-E, 1296 x 966, 30 FPS, Grayscale, 1/3″ CCD
601-0357Camera, M180, Gig-E, 1628 x 1236, 20 FPS, Grayscale, 1/1.8″ CCD
601-0355Camera, M390, Gig-E, 2448 x 2050 (5MP), 17 FPS, Grayscale, 2/3″ CCD
601-0378Camera, M100C, Gig-E, 659 x 494, 100 FPS, Color, 1/4″ CCD
601-0423Camera, M110, Gig-E, 659 x 494, 90 FPS, Grayscale, 1/3″ CCD**
601-0424Camera, M110C, Gig-E, 659 x 494, 90 FPS, Color, 1/3″ CCD**
601-0450Camera, M115, Gig-E, 659 x 494, 100 FPS, Grayscale, 1/2″ CCD***
601-0451Camera, M115C, Gig-E,659 x 494, 100 FPS, Color, 1/2″ CCD***
601-0452Camera, M125, Gig-E, 782 x 582, 75 FPS, Grayscale, 1/2″ CCD***
601-0453Camera, M125C, Gig-E, 782 x 582, 75 FPS, Color, 1/2″ CCD***
601-0379Camera, M150C, Gig-E, 1296 x 966, 30 FPS, Color, 1/3″ CCD
601-0384Camera, M180C, Gig-E, 1628 x 1236, 20 FPS, Color, 1/1.8″ CCD
601-0454Camera, M190, Gig-E, 2048 x 1088, 50 FPS, Grayscale, 2/3″ CMOS***
601-0455Camera, M190C, Gig-E, 2048 x 1088, 50 FPS, Color, 2/3″ CMOS***
601-0456Camera, M195, Gig-E, 2048 x 2048, 25 FPS, Grayscale, 1″ CMOS***
601-0457Camera, M195C, Gig-E, 2048 x 2048, 25 FPS, Color, 1″ CMOS***
601-0358Camera, M200, Gig-E, 659 x 494, 70 FPS, Grayscale, 1/3″ CCD
601-0385Camera, M200C, Gig-E, 659 x 494, 70 FPS, Color, 1/3″ CCD
601-0359Camera, M202, Gig-E, 659 x 494, 79 FPS, Grayscale, 1/2″ CCD
601-0386Camera, M202C, Gig-E, 659 x 494, 79 FPS, Color, 1/2″ CCD
601-0426Camera, M205, Gig-E, 752 x 480, 64 FPS, Grayscale, 1/3″ CMOS**
601-0427Camera, M205C, Gig-E, 752 x 480, 64 FPS, Color, 1/3″ CMOS**
601-0360Camera, M210, Gig-E, 782 x 582, 55 FPS, Grayscale, 1/2″ CCD
601-0387Camera, M210C, Gig-E, 782 x 582, 55 FPS, Color, 1/2″ CCD
601-0361Camera, M230, Gig-E, 1034 x 779, 31 FPS, Grayscale, 1/3″ CCD
601-0388Camera, M230C, Gig-E, 1034 x 779, 31 FPS, Color, 1/3″ CCD
601-0362Camera, M250, Gig-E, 1296 x 966, 32 FPS, Grayscale, 1/3″ CCD
601-0389Camera, M250C, Gig-E, 1296 x 966, 32 FPS, Color, 1/3″ CCD
601-0363Camera, M270, Gig-E, 1392 x 1040, 30 FPS, Grayscale, 2/3″ CCD
601-0390Camera, M270C, Gig-E, 1392 x 1040, 30 FPS, Color, 2/3″ CCD
601-0353Camera, M290, Gig-E, 1628 x 1236, 14 FPS, Grayscale, 1/1.8″ CCD
601-0380Camera, M290C, Gig-E, 1628 x 1236, 14 FPS, Color, 1/1.8″ CCD
601-0420Camera, M295, Gig-E, 1628 x 1236, 28 FPS, Grayscale, 1/1.8″ CCD*
601-0421Camera, M295C, Gig-E, 1628 x 1236, 28 FPS, Color, 1/1.8″ CCD*
601-0354Camera, M300, Gig-E, 648 x 488, 210 FPS, Grayscale, 1/3″ CCD
601-0381Camera, M300C, Gig-E, 648 x 488, 210 FPS, Color, 1/3″ CCD
601-0364Camera, M330, Gig-E, 1004 x 1004, 60 FPS, Grayscale, 2/3″ CCD
601-0391Camera, M330C, Gig-E, 1004 x 1004, 60 FPS, Color, 2/3″ CCD
601-0365Camera, M350, Gig-E, 1608 x 1208, 35 FPS, Grayscale, 1″ CCD
601-0392Camera, M350C, Gig-E, 1608 x 1208, 35 FPS, Color, 1″ CCD
601-0382Camera, M390C, Gig-E, 2448 x 2050 (5MP), 17 FPS, Color, 2/3″ CCD
Accessories, MX-Series processors and M-Series cameras
I/O Cables, MX-Series (37 Pin D-Sub)
606-0675-.75Cable, I/O, MX-Series, Processor to Terminal Block, .75 Meter
606-0675-1.5Cable, I/O, MX-Series, Processor to Terminal Block,  1.5 Meter
606-0675-3Cable, I/O, MX-Series, Processor to Terminal Block, 3 Meter
606-0675-4.5Cable, I/O, MX-Series, Processor to Terminal Block, 4.5 Meter
606-0675-7.5Cable, I/O, MX-Series, Processor to Terminal Block, 7.5 Meter
I/O and Power Cables, M-Series Cameras (Hirose to D-Sub Style Connector)
606-0672-02M1xx Camera Power and I/O Cable, 6 pin, 2 Meter, pigtail
606-0672-03M1xx Camera Power and I/O Cable, 6 pin, 3 Meter, pigtail
606-0672-05M1xx Camera Power and I/O Cable, 6 pin, 5 Meter, pigtail
606-0672-10M1xx Camera Power and I/O Cable, 6 pin, 10 Meter, pigtail
606-0671-02M2xx and M3xx Camera Power and I/O Cable, 12 pin, 2 Meter, pigtail
606-0671-03M2xx and M3xx Camera Power and I/O Cable, 12 pin, 3 Meter, pigtail
606-0671-05M2xx and M3xx Camera Power and I/O Cable, 12 pin, 5 Meter, pigtail
606-0671-10M2xx and M3xx Camera Power and I/O Cable, 12 pin, 10 Meter, pigtail
I/O and Power Cables, M-Series Cameras (Hirose to D-Sub Style Connector)
606-0674-02Cable, Camera Power and I/O, M1xx, 6 pin, 2 Meter, Camera to Terminal Block
606-0674-03Cable, Camera Power and I/O, M1xx, 6 pin, 3 Meter, Camera to Terminal Block
606-0674-05Cable, Camera Power and I/O, M1xx, 6 pin, 5 Meter, Camera to Terminal Block
606-0674-10Cable, Camera Power and I/O, M1xx, 6 pin, 10 Meter, Camera to Terminal Block
606-0673-02Cable, Camera Power and I/O, M2xx and M3xx, 12 pin, 2 Meter, Camera to Terminal Block
606-0673-03Cable, Camera Power and I/O, M2xx and M3xx, 12 pin, 3 Meter, Camera to Terminal Block
606-0673-05Cable, Camera Power and I/O, M2xx and M3xx, 12 pin, 5 Meter, Camera to Terminal Block
606-0673-10Cable, Camera Power and I/O, M2xx and M3xx, 12 pin, 10 Meter, Camera to Terminal Block
I/O Boards (Processor)
248-0110I/O Board, C & MX-Series Processors, Female DB37, DIN Rail Mountable, no isolation
661-0403I/O Board, MX-Series External I/O terminal Block, DIN Rail Mountable, with isolation
I/O Boards (Camera)
248-0140I/O Board, M1xx Camera, 1 Input / 1 Output, Female DB9, DIN Rail Mountable,  no isolation
248-0141I/O Board, M2xx and M3xx Cameras, Female HD15, DIN Rail Mountable, no isolation
661-0399I/O Board, M1XX Camera, w / isolation
661-0400I/O Board, M2XX, M3XX, & Aviator Camera, w / isolation
661-0401I/O Board, M5XX Camera, w / isolation
661-0402I/O Board, JAI Camera, w / isolation
Camera Brackets for M1xx, M2xx & M3xx Cameras
381-1354Camera Mount, M2xx and M3xx Cameras
381-1355Camera Mount, M1xx Cameras
Accessories / Replacement Parts
561-0109Replacement Filter Material for MX20 / MX40 Processor
606-0678Replacement Wall Mount for MX20 / MX40 Processor
604-0218Replacement internal I/O Board for MX20 / MX40 Processor
606-0683DIN Rail Mount kit for IMPACT MX20 / MX40 Processor
95A906038DIN Rail Mount kit for IMPACT MX80 Processor
555-0149Replacement Power Supply for MX20 / MX40 Processor
MX-Series – Upgrades
098-0257-1Field upgrade of MX40/MX80 Processor – Add 1 Camera License
098-0257-2Field upgrade of MX40/MX80 Processor – Add 2 Camera Licenses
098-0257-3Field upgrade of MX40/MX80 Processor – Add 3 Camera Licenses
651-0168Windows XP to Windows 7 Upgrade (requires unit to be sent back to Datalogic, MN)
MX-Series – 3rd Party Camera License
Please see the Vision Accessories Price List for a list of compatible cameras
Third Party cameras purchased through Datalogic Automation are NOT subject to License Fee.
098-0261Camera License for JAI Camera on MX-Series Processor (all licensed Camera Ports)
098-0263Camera License for Basler Aviator Camera on MX-Series Processor (all licensed Camera Ports)
098-0264Camera License for SVS-Vistek Camera on MX-Series Processor (all licensed Camera Ports)*
098-0266Camera License for Teledyne Dalsa Camera on MX40 & MX80 Processors (all licensed Camera Ports)**
